Mounting Blocks for Cordless Drill Motor/gearboxes |
||||||||||||
 |
||||||||||||

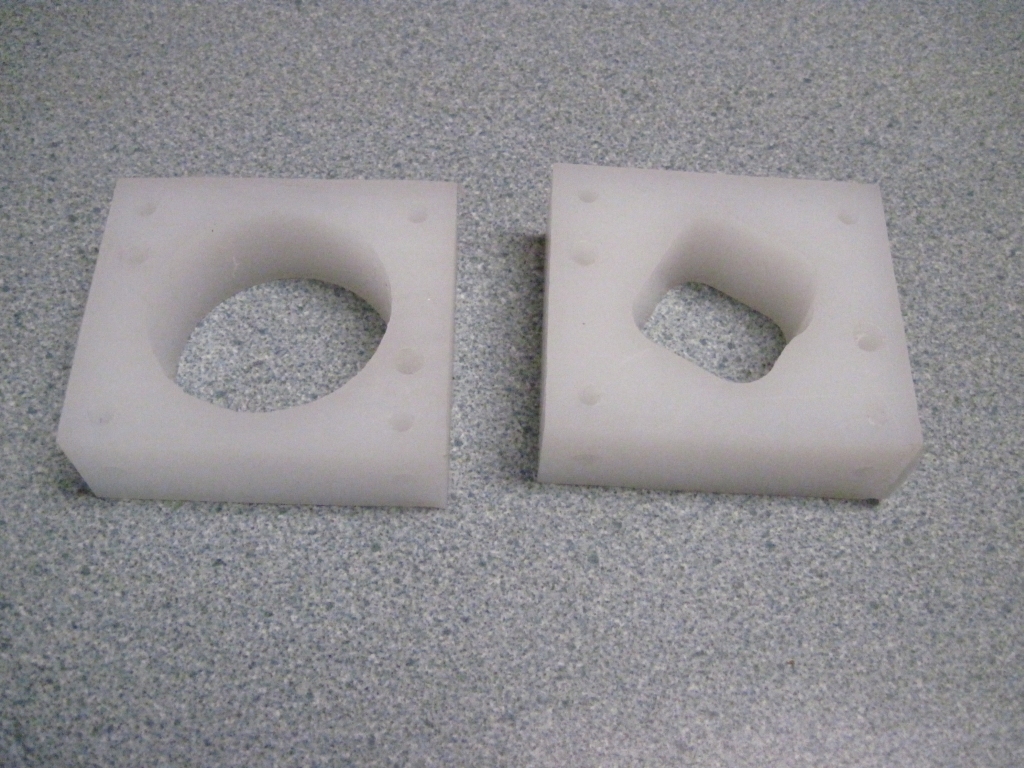

These blocks are routed from 3/4" UHMW to neatly mount the Motor/Gearbox from a Harbor Freight Cordless Drill. Mounting holes are provided on the face and tpp/bottom to
suit 10-14 Plastite Screws These mounts are also used in the Kitbots Bot Hockey Kit |
||||||||||||
|
||||||||||||

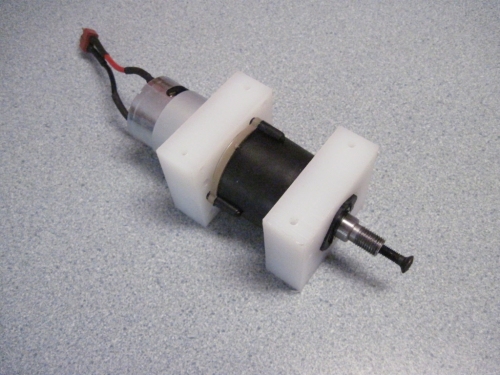

Mounts with Motor in place. |
||||||||||||
Dimensioned Drawing (pdf) |
||||||||||||
Igs file of Mounts with motor and kitbots hub with 3" colson wheel |
||||||||||||
