Actual measured no load speed of 930rpm at 12.15v

 Neutral timing.

No-load rated current: 0.9A

Rated torque: 0.5kg.cm.cm

The Heatshrink sleeving added in the "hardening" process increases gearbox diameter to approx 1.030 inches.

Details of face mounting plates here

Purchase this motor here



Solidworks Model

IGS File

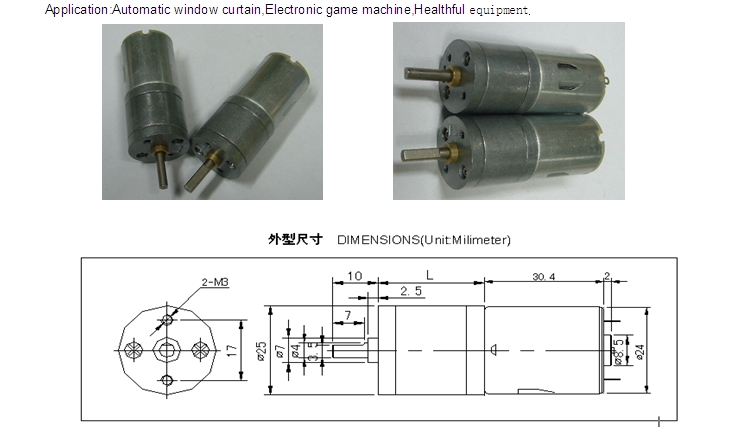

PDF Drawing of the motor

Used in the Kitbots Weta kits they provide good speed and power at 11.1V and 3" wheels

Daves 4mm Hubs and LiteFlite wheels recommended
