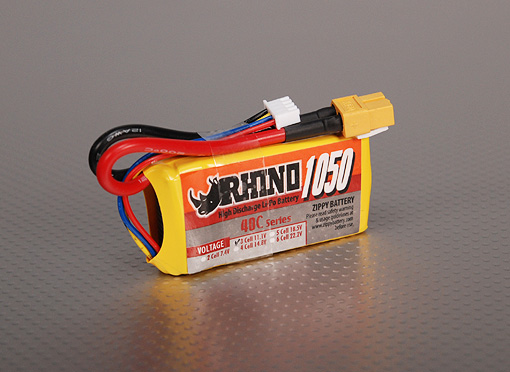

Ordered a couple of 1050mAH 40C liPos from
www.hobbycity.com. I would have liked to also get some of the new power connectors they use but they were out of stock so I'll refit
these with deans type for Motorama. |
|
|
|

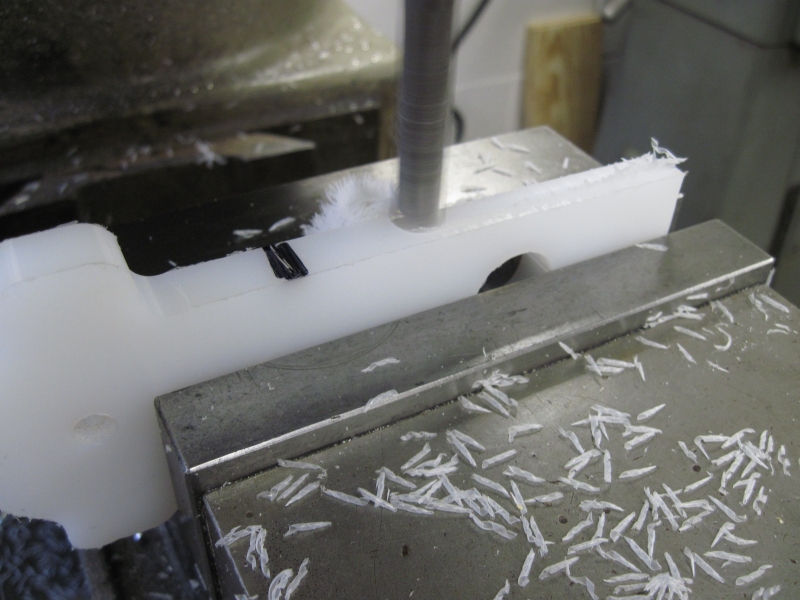

I machined a recess to into the top and bottom of each side piece. This will make it a little harder for an opponents weapon to catch the edges of the
Carbon Fibre panels. |
|
|
|

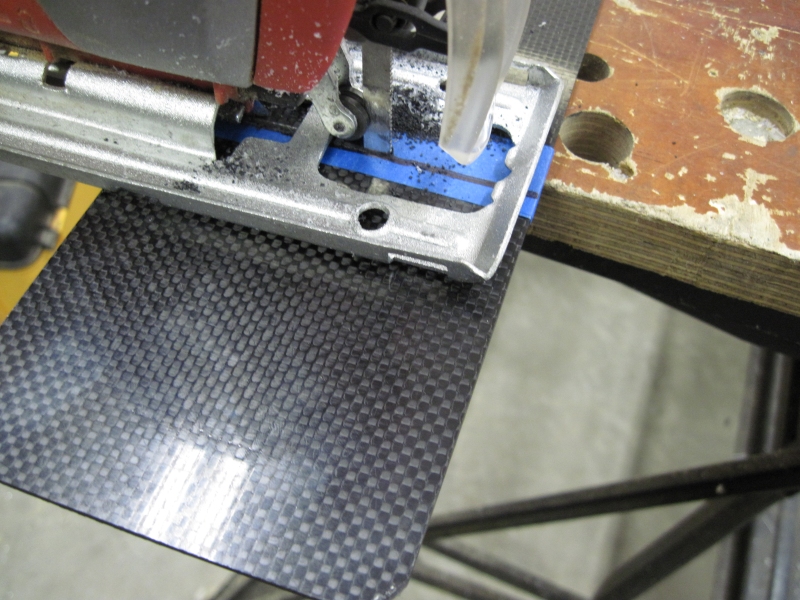

The top and bottom panels were cut out of 2mm thick Carbon Fibre using a Jigsaw and a fine toothed blade. CF dust is a nasty irritant so moisten the cut area
and clean it up after the cuts. |
|
|
To give clearance for the radius on the end of each recess in the side walls, I snipped off 1/4" corners off one end of the panels using tin snips. |
|
|

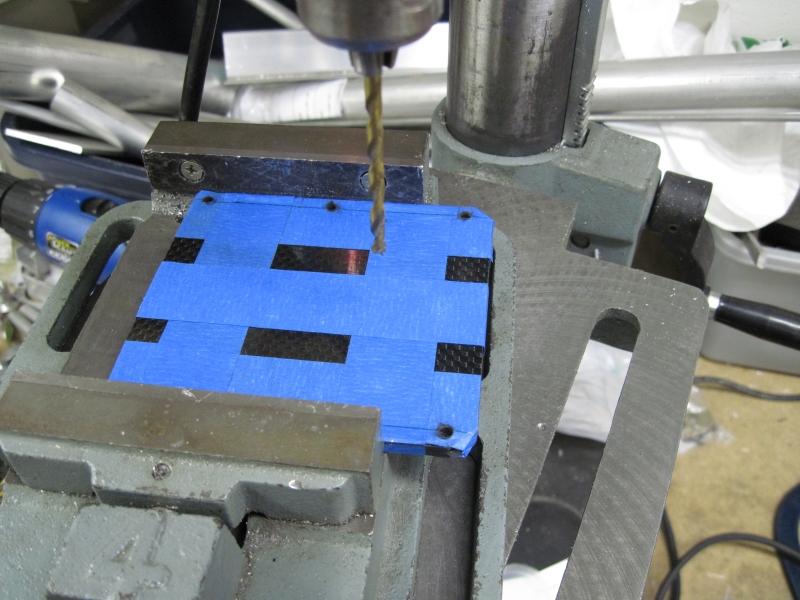

I taped both panels together to drill the required mounting holes. |
|
|
|

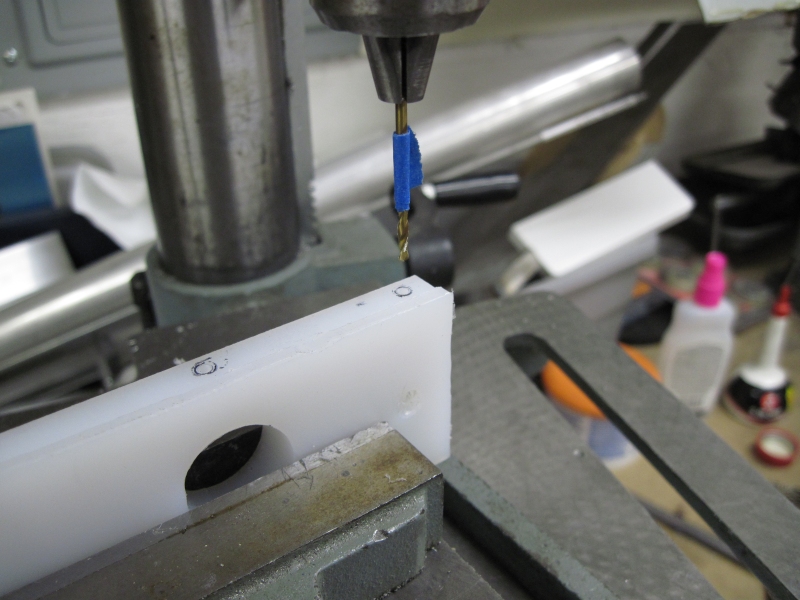

Pilot holes were drilled for the "Plastite"screws I'll use to hold the bot chassis together. The tape on the bit was used so that the holes were the correct
depth. |
|
|
|
A trial assembly showed that the assembly is remarkably stong and rigid. |
|
